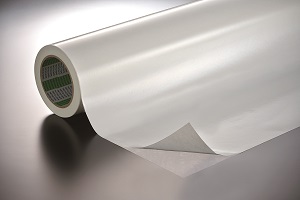

Double Sided Tape with Superior Thermal Conductive Property and Adhesion TR Series

TR series use a thermal conductive adhesive, providing remarkable conductivity.

Superior thermal conductivity by a low value of thermal resistance.

Download

Features

  • Low thermal resistance and superior thermal conductivity.
  • Powerful adhesion for remarkable strength and reliability.
  • Features excellent workability and processability.
  • TR series (exclude TR-5310EX)  features UL-94 V-0 flame retardancy.
     (Halogen free) [File No.QMFZ2.E52859]
  • Does not contain the 10 substances restricted by RoHS Directive.
You can look the video of thermal conductive and flame retardancy property.

Structures

Properties

Product No. TR-5320F TR-5325F TR-5310EX
Thickness
(mm)
0.20 0.25 0.10
Adhesive Strength
[N/20mm]
11.0 11.4 9.5
Thermal Conductivity *1
[W/m·K]
1.0 0.4
Thermal Resistance
[cm2·K/W]
3.2 3.5 3.6
Flame Retardance
[UL94]
V-0 -
Carrire PET#12
UL94 V0 flame retardancy acquired (halogen free) [File No.QMFZ2.E52859]

[Remarks]

  • * Measured by peeling in a 180° direction at a speed of 300 mm/min at 23℃ with 0.025 mm PET lining.
  • * These values are only examples of observed samples and not a guarantee of performance.
  • *1 Laser flash method At 23°C

Applications

  • For fixing LED base board and housing.
  • For fixing CPU and heat sink or radiation fin.
  • For fixing various types of semiconductor package and heat sink.
  • For fixing electronic parts and heat sink.
