Double-coated Tape 5015E

Nitto double-coated tape 5015E consists of a non-woven tissue carrier, coated with a pressure sensitive acrylic adhesive used for a wide variety of mounting applications.

Download

Features

  • High repulsion resistance
  • Wide range of working temperatures
  • High adhesion on difficult to adhere materials e.g. low surfaces energy
  • Recognition by imprint of the carrier
  • RoHS compliant
  • UL certified: UL 746A/UL 746C

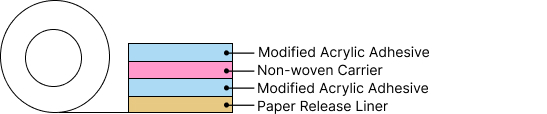

Structure

  1. Modified acrylic adhesive
  2. Non-woven carrier
  3. Modified acrylic adhesive
  4. Paper release liner

Properties

Typical Value Test Method
Adhesive type Modified acrylic adhesive
Tape thickness* 0.160 mm EN 1942
Release liner Siliconised white Nitto printed paper (120 g/m²)
Carrier type Non-woven
Release value 20 cN/50mm Nitto Test Method
Adhesion to BA steel 1600 cN/20mm EN 1939
Static shear 1 mm/3h EN 1943
Transport and storage conditions Temperature 15 to 30°C
Relative humidity 40 to 75% RH

* Tape thickness = Total thickness without liner
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.

Applications

Nitto 5015E is designed to make foams self-adhesive for a wide range of sealing applications. Especially when they are exposed to severe stress, as in automotive applications. The double-coated tape is used to bond graphic overlays, plastic plates and molds, surely if they have a low surface energy.
