Ultrahigh-molecular-weight Polyethylene Porous Film SUNMAP™

Porous film offers air permeability without changing the characteristics of ultrahigh-molecular-weight polyethylene.

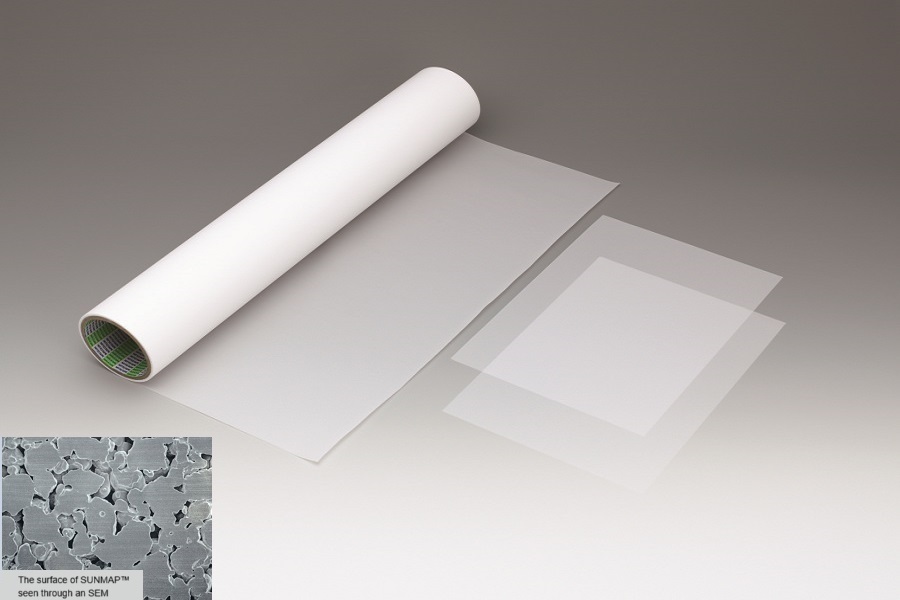

"SUNMAP™" is an ultrahigh-molecular-weight polyethylene porous film developed by Nitto Denko's original technology of special calcinations in which ultrahigh-molecular-weight polyethylene powder is formed into a porous sintered compact, then cut. The porous film provides new characteristics such as air permeability and low friction coefficient while maintaining the superior characteristics of ultrahigh-molecular-weight polyethylene such as chemical resistance, abrasion resistance, and releasability. With excellent processability, it offers and will expand a wide range of applications.

Download

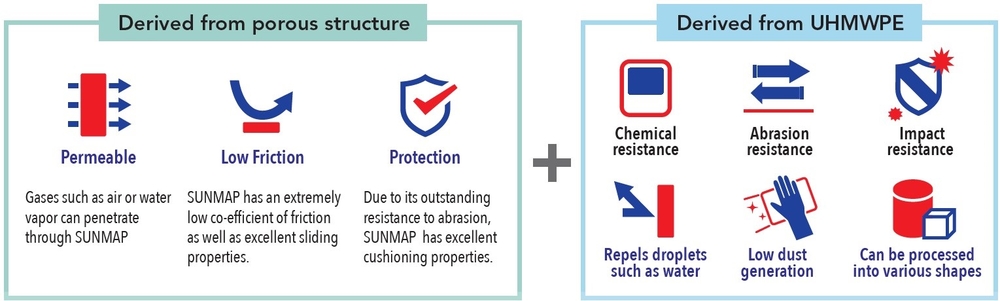

Features

  • Porous film of open cell with excellent air permeability and moisture permeability.
  • Offers superior sliding property by making ultrahigh-molecular-weight polyethylene porous which has excellent abrasion resistance and low friction coefficient.
  • Hardly affected by virtually all the chemicals including acid and alkali with its chemical stability.
  • Can be used for heat sealing, punching and for fillers with its excellent processability.

Properties

Product No. SUNMAP LC-T
Thickness [mm] 0.5
Average pore size [µm] 17
Air permeability [sec/100cm3] 1.4
Porosity [%] 30
Tensile strength [Mpa] 12
Elongation [%] 90
Hardness [Shore D] 48
Surface roughness(Ra) [µm] 2.0
Dynamic coefficient of friction 0.1

[Remarks]

  • * The above values are sample observed values, not the guaranteed performance.

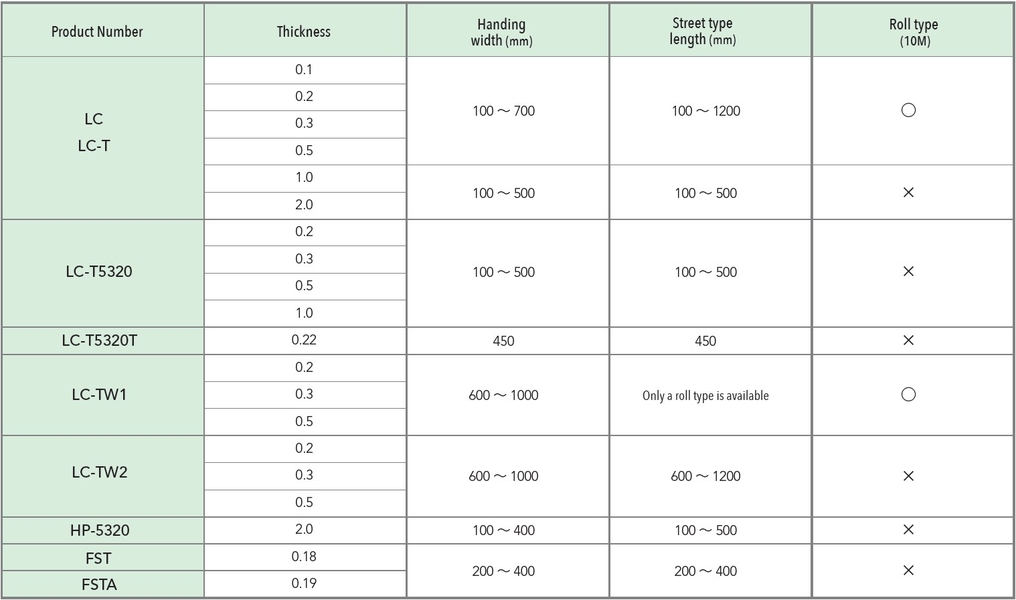

Size

Product No. Thickness [mm] Handling width [mm] Sheet type length [mm] Roll type [10m] Average pore size [µm] Porosity [%] Features
LC 0.1 100-700 100-1200 17 30
  • ・Base Grade
0.2
0.3
0.5
1.0 100-500 100-500
2.0
LC-T 0.1 100-700 100-1200 17 30
  • ・Antistatic
0.2
0.3
0.5
1.0 100-500 100-500
2.0
LC-T5320 0.2 100-500 100-500 17 30
  • ・Antistatic
  • ・One side flat surface
0.3
0.5
1.0
LC-T5320T 0.22 450 450 17 30
  • ・Air permeability with adhesive
  • ・Antistatic
  • ・One side flat surface
LC-TW1 0.2 600-1000 Only available as a roll type 17 30
  • ・Wide version of LC-T
  • ・Antistatic
  • ・Only available as a roll type
0.3
0.5
LC-TW2 0.2 600-1000 600-1200 17 30
  • ・Improved sliding properties compared with LC-TW1
  • ・Antistatic
  • ・Over 600 apexes
0.3
0.5
HP-5320 2.0 100-500 100-500 24 38
  • ・Antistatic
  • ・One side flat surface

[Remarks]

  • * Please consult with us if you have any queries regarding size

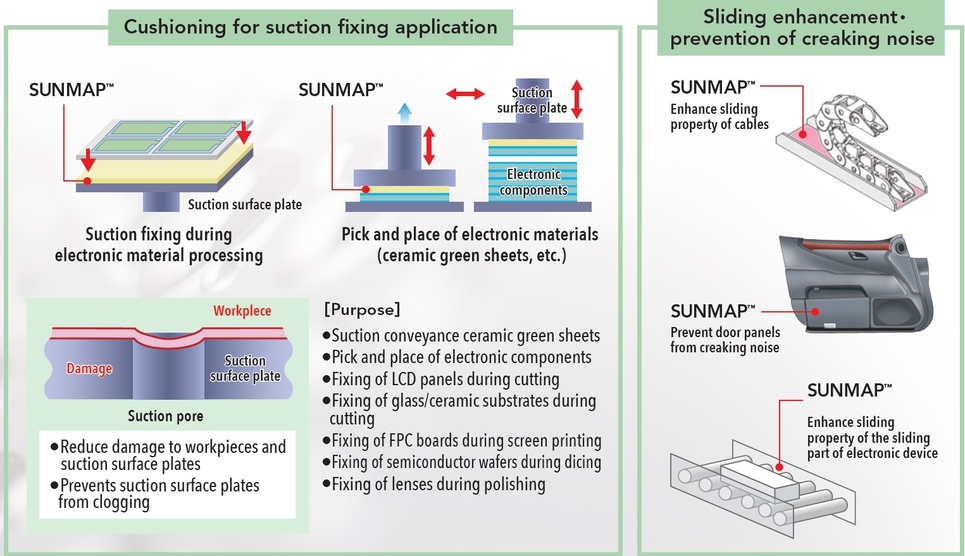

Applications

  • Absorption/fixing of ceramic green sheet.
  • Fixing when cutting LCD panel, cutting glass/ceramic substrates
  • Fixing during FPC board screen printing
  • Fixing during semiconductor wafer dicing
  • For polishing and fixing lenses
