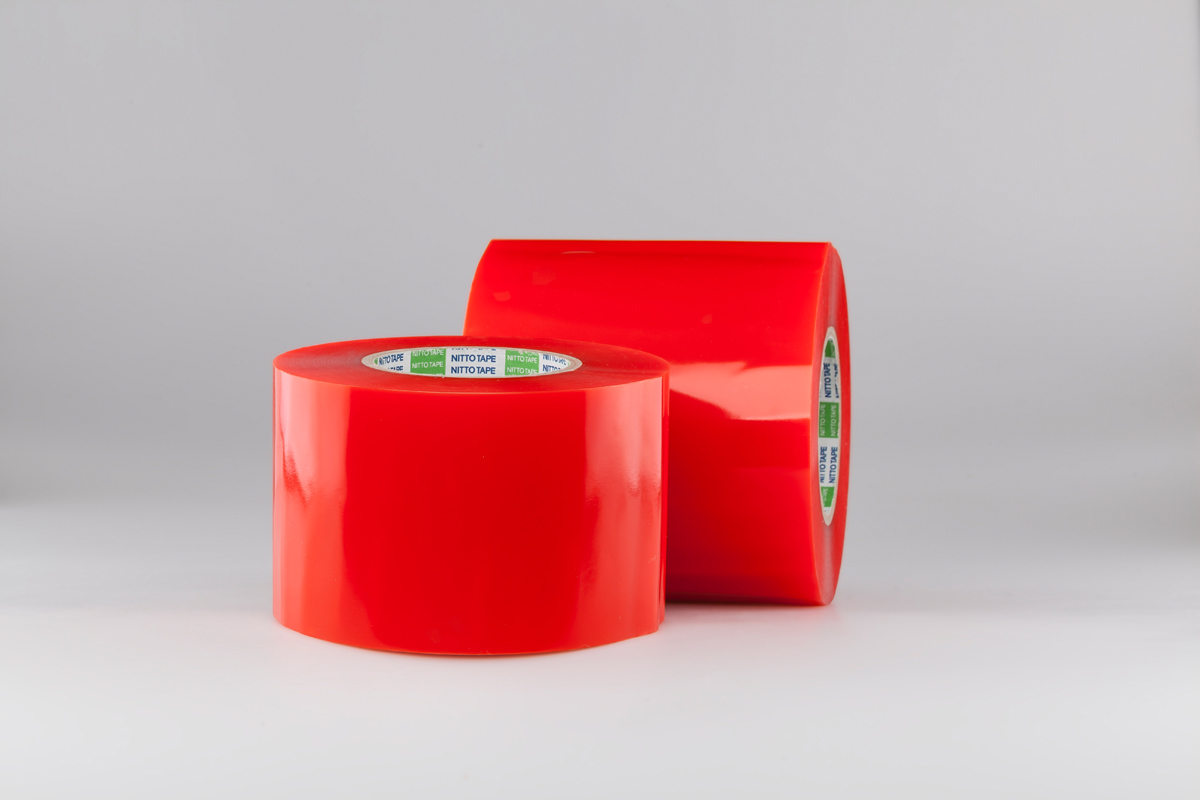

Nitto D5320RD is a heavy-duty, multi-purpose double-coated tape featuring a PET carrier coated on both sides with an acrylic adhesive.
It provides high adhesion to a wide range of substrates including plastics, metals, and rough surfaces while ensuring secure and durable bonding. The PET carrier offers excellent dimensional stability, minimizing elongation and shrinkage during processing and application. The tape is supplied with a plastic release liner, offering superior tear resistance and making it ideal for narrow-width applications.
 |
| Typical value* | Test Method | |
|---|---|---|
| Tape thickness** | 0.180 mm | EN 1942 |
| Adhesive type | Modified acrylic | n/a |
| Release liner type | Siliconized red PP (0.070mm) | n/a |
| Carrier type | PET (0.012mm) | n/a |
| Adhesion to BA steel | 1700 cN/20mm | EN 1939/ ISO 29862 |
| Adhesion to ABS | 1600 cN/20mm | EN 1939/ ISO 29862 |
| Adhesion to PP | 950 cN/20mm | EN 1939/ ISO 29862 |
| Static shear | 1 mm/3h | EN 1943 |
| Saft test | 185°C | +0.5°C/min, 20x15mm, 200g |
Nitto D5320RD is used for mounting decorative profiles in furniture industry and for securing cable ducts. Suitable for mounting plastic parts in the signage and nameplate market for marketing devices.
