Surface Protection Tape for anti-fingerprint coated metals SPV AFP-series

SPV AFP-series are surface protection tapes suitable to protect anti-fingerprint coated metals during mechanical processes.

These products consist of a plastic film coated with a pressure sensitive based adhesive.

Download

Features

  • Oil-resistance (AFP-853)
  • Range of medium to high adhesion level
  • Good deformation behaviour
  • Tear resistant film (PO film)
  • Air-bubble free adhesive (AFP-585)
  • Substrate identification and inspection
  • Good humidity resistance
  • Recyclable

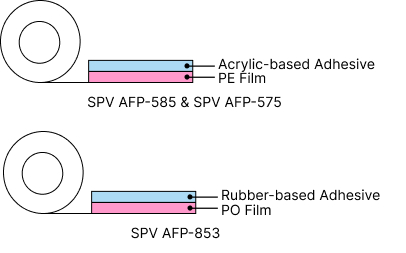

Structure

  • Pressure sensitive acrylic based adhesives
  • Clear transparent PE film (SPV AFP-585 )
  • Pressure sensitive rubber based adhesive
  • Blue transparent tear resistance PO film (SPV AFP-853)

Properties

AFP-853 AFP-585 Test Method
Film type PO film PE film
Adhesive type rubber based acrylic based
Total thickness 0.080 mm 0.050 mm EN 1942
Adhesion on BA steel 110 cN/20mm 120 cN/20mm EN 1939
Tensile strength MD** 25 N/20mm 22 N/20mm EN 14410
Elongation MD** 250% 250% EN 14410
Weatherability on BA steel* 40 hours 25 hours ISO 4892-2
Colour Blue TR Clear TR
Transport and storage conditions Temperature 15 to 30 °C
Relative humidity 40 to 75% RH

* The weatherability is measured on BA steel. Depending on the substrate the weatherability performance can be different.
** MD = Machine Direction
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.

Applications

SPV AFP-series are surface protection tapes suitable to protect anti-fingerprint coated metals during transport and mechanical processes such as bending, punching and light and severe deformations.
