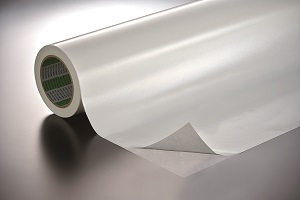

Double Sided Tape with Superior Thermal Conductive Property and Adhesion TR-5310EX

TR-5310EX use a thermal conductive adhesive, providing remarkable conductivity.

Superior thermal conductivity by a low value of thermal resistance.

Download

Features

  • Low thermal resistance and superior thermal conductivity.
  • Powerful adhesion for remarkable strength and reliability.
  • Features excellent workability and processability.
  • Does not contain the 10 substances restricted by RoHS Directive.

Structures

Properties

Product No. TR-5310EX
Thickness
(mm)
0.10
Adhesive Strength
[N/20mm]
9.5
Thermal Conductivity *1
[W/m·K]
0.4
Thermal Resistance
[cm2·K/W]
3.6
Carrier material PET#12
Adhesive Thermal conductive acrylic adhesive
[Remarks]
  • *1 Laser flash method At 23°C

Applications

  • For fixing LED base board and housing.
  • For fixing CPU and heat sink or radiation fin.
  • For fixing various types of semiconductor package and heat sink.
  • For fixing electronic parts and heat sink.
