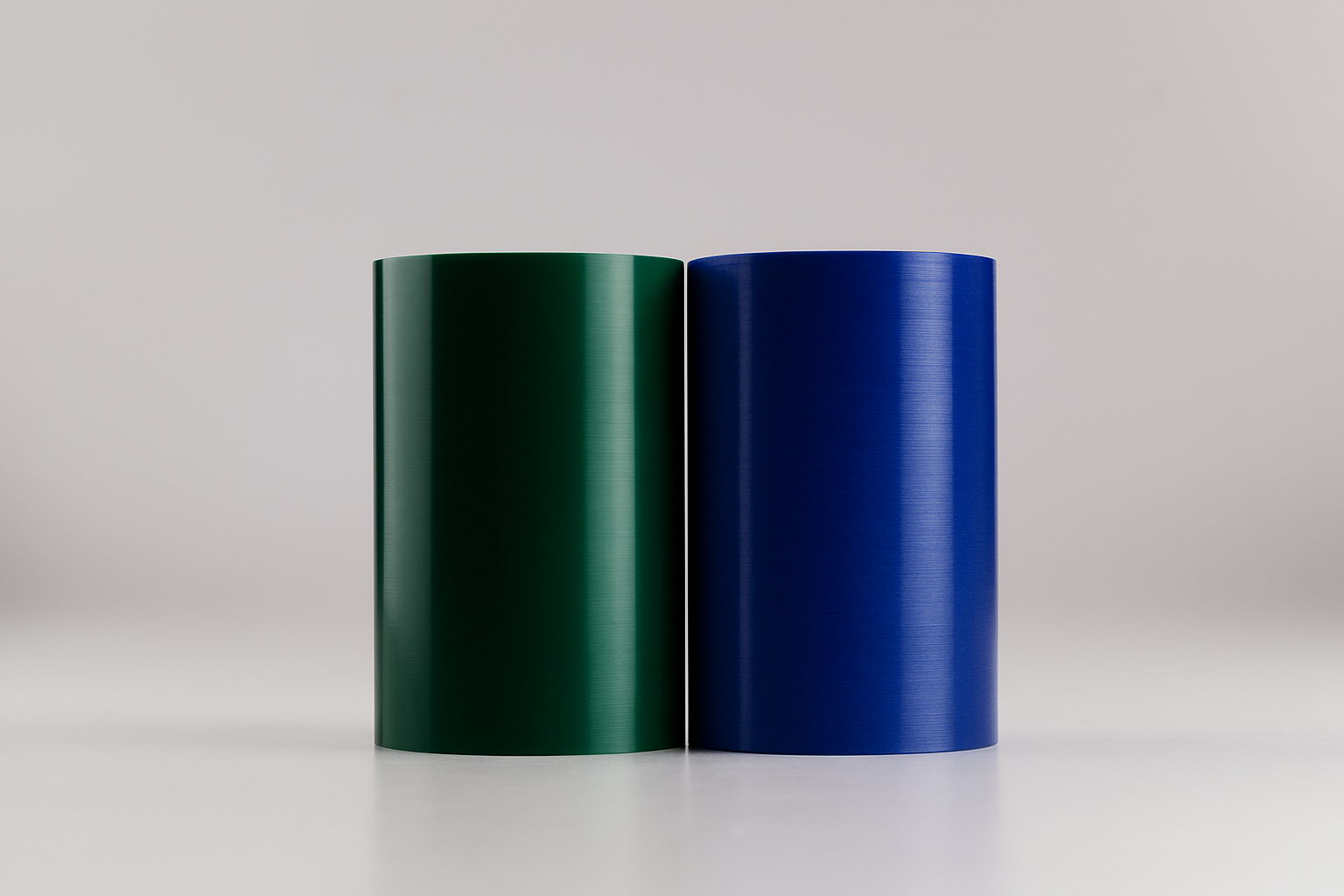

The SPV 6065E HP series are Surface Protection Tapes suitable for the protection of metal surfaces with high gloss, matt and brushed finishes during mechanical operations such as deep drawing and profiling.
These tapes consist out of a specially designed high-performance PO film that has an outstanding tear resistance. They are coated with a pressure-sensitive, acrylic-based easy-to-peel adhesive available in medium (E5), high (E7), and very high (E9) adhesion levels to support various processing operations and surface roughness.
 |
| SPV 6065E5 HP | SPV 6065E7 HP | SPV 6069E7 HP | SPV 6065E9 HP | Test Method | |
|---|---|---|---|---|---|
| Film type | Tear resistant PO film | Tear resistant PO film | Tear resistant PO film | Tear resistant PO film | n/a |
| Adhesive type | Acrylic-based | Acrylic-based | Acrylic-based | Acrylic-based | n/a |
| Total thickness | 60µm | 60µm | 60µm | 60µm | EN 1942 |
| Adhesion on BA steel | 200 cN/20mm | 300 cN/20mm | 300 cN/20mm | 400 cN/20mm | EN 1939 |
| Tensile strength MD** | 40 N/20mm | 40 N/20mm | 40 N/20mm | 40 N/20mm | EN 14410 |
| Elongation MD** | 600% | 600% | 600% | 600% | EN 14410 |
| Color | Blue transparent | Blue transparent | Green transparent | Blue transparent | n/a |
* The weatherability is measured on BA steel. Depending on the substrate the weatherability performance can be different.
** MD = Machine Direction
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.
SPV 6065E HP series are high-performance Surface Protection Tapes designed for the protection of metal substrates during mechanical processing. The specially designed high performance (HP) PO film guarantees good tear resistance in both machine and cross direction, which leads to very minor film burrs during processing The products have three different adhesion levels ensuring a secure bonding and reliable performance on the appropriate surfaces. Compared to standard PE film they show a high humidity resistance and an improved oil resistance. SPV 6065E5 HP comes with a medium adhesion level and can be used on high gloss metals, SPV 6065E7 HP is preferably to be used on matt metals, and SPV 6065E9 HP on brushed metals, such as stainless steel and aluminum The easy-to-peel adhesive combines a low unwind with a low peel force, which decreases with increased removal speed.
