Surface Protection Tape for Fiber & CO2 Laser Cutting FIBERGUARD® 511M10P Light

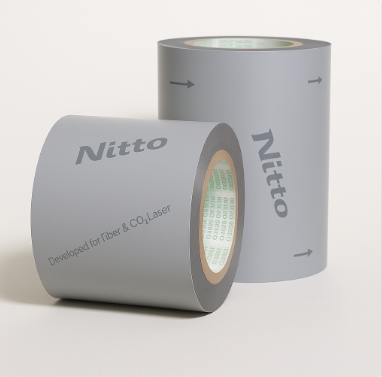

Nitto FIBERGUARD® 511M10P consists of a printed black and grey PE film with a special release coating and coated with a pressure sensitive natural rubber-based adhesive with a medium adhesion level.

This product protects metal surfaces during both Fiber and CO2 laser cutting processes. It is ideal for high speed and performance laser cutting machines.

Download

Features

  • Laser cutting of stainless steel up to 2mm
  • No pre-cutting required
  • No bubble-forming
  • Functional print
  • Medium adhesion
  • Film with high mechanical strength
  • Recyclable film

Structure

Properties

Properties*

Typical value* Test Method
Film type LDPE film n/a
Adhesive type Rubber-based n/a
Total thickness 100µm BTM019
Adhesion on BA steel 210 cN/25mm ISO 29862
Breaking strength MD** 55 N/25mm ISO 29864
Elongation MD** 250% ISO 29864
Weatherability on BA steel* 100h ISO 4892-2
Color Black and grey film printed with arrows and Nitto brand n/a

* The weatherability is measured on BA steel. Depending on the substrate the weatherability performance can be different.
CAUTION*: The above are typical values and should not be used in writing specifications.
** MD = Machine Direction
Details from the test methods are described on the customer product specification.

Applications

Nitto FIBERGUARD® 511M10P protects metal surfaces during both Fiber and CO2 laser cutting processes. It is ideal for high speed and performance laser cutting machines. Printed arrows allow you to install your metal in the appropriate direction after the laser cutting process. This will enable you to protect your substrate till the end of the supply chain, resulting in an optimum protection from scratches and impurities during various mechanical processes (bending, stamping, forming, etc).
