Sulfur-free Type NITTO EPTSEALER EH-2200

A shaped sealing material made of EPDM compound foamed into a semi-closed cell structure.

This is a shaped sealing material made of EPDM rubber foamed into a semi-closed cell structure. It is a clean foam that contains no sulfur which is commonly used in rubber vulcanization and could corrode metals. It can be used for various purposes such as shock absorbing, sound proofing, dust proofing, and heat insulation depending on its compression rate.

Download

Features

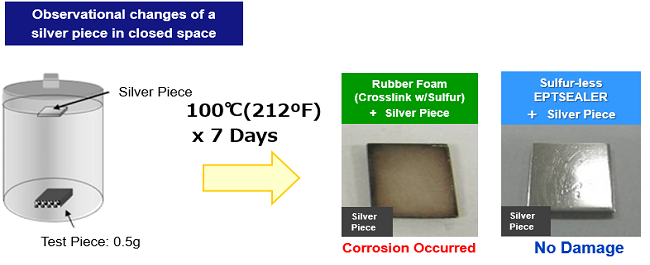

  • Sulfur-free foam exhibits superior metal corrosion resistance.
  • Can be compressed effortlessly and adheres well to uneven surfaces, providing excellent air-tightness and sound insulation.
  • Superior durability, weatherability, heat resistance, and chemical resistance.

Structure

Standard Size

Thickness[mm]Width[mm]Length[m]
3-20 (Comes with adhesive 3-25)9002
Thickness[mil]Width[in]Length[yd]
118-787 (Comes with adhesive 118-984)352

Properties

Product No.Apparent density
[g/cm3]
Tensile strength
[N/cm2]
Elongation[%]Compressive hardness[N/cm2]
25%50%
EH-22000.116.02700.221.30

[Remarks]

  • *These values are only examples of observed samples and not a guarantee of performance.

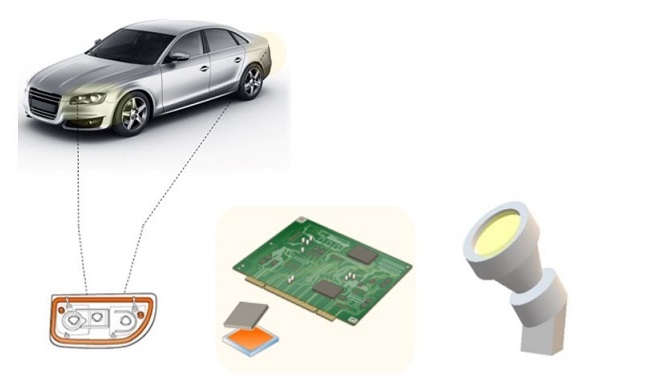

Applications

  • Shock absorbing/sound proofing material for flat screen TV.
  • Sealing ECUs and related components.
  • Sealing Li-ion batteries and related components.
  • Sealing electric/electronic devices.
