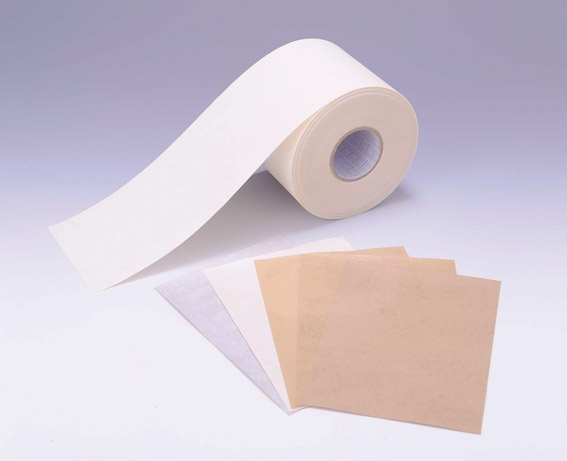

Insulation Paper with Excellent Heat and Weather Resistance Multi-layered Laminate Material NPN
Insulating paper is a multilayer laminate product offering excellent insulation, heat-resistance, and mechanical strength. It has achieved many satisfactory results, especially as a motor insulating material.
Download
Features
- This compound laminate is a combination of a remarkably heat-resistant sheet and strong film, providing excellent insulation, heat-resistance, and mechanical strength.
Structure
 |
Properties
| item | Unit | Insulating paper : constructed with aramid paper | ||||
| NPN-222(SA) | NPN-252(SA) | NPN-272(SA) | NPN-333(LA) | |||
| Construction | Aramid-1 | - | 2 mils | 2 mils | 2 mils | 3 mils |
| Film-2 | - | PEN #50 | PEN #125 | PEN #188 | PEN #75 | |
| Aramid-3 | - | 2 mils | 2 mils | 2 mils | 3 mils | |
| Adhesive | - | Acrylic | Acrylic | Acrylic | Acrylic | |
| Nominal thickness | μm | 210 | 290 | 350 | 260 | |
| Tensile strength | MD | MPa | 90 | 105 | 110 | 110 |
| TD | 65 | 100 | 105 | 85 | ||
| Edge burst strength resistance | MD | N/20mm | 560 | 1150 | 1320 | 840 |
| TD | 530 | 960 | 1320 | 830 | ||
| Dielectric break down voltage | A | kV | 14 | 20 | 22 | 17 |
| D-24/23 | 14 | 20 | 22 | 17 | ||
| Comparative tracking index | V | 575(PLC rank1) | 375(PLC rank2) | |||
[Remarks]
- * Measurements provided here are measurement value examples and are not guaranteed.
Applications
- Motor and generator slot insulator
