Double-coated Tape 5791

Nitto 5791 is a double coated foam tape, based on a cross linked polyolefine foam, coated with pressure sensitive adhesive, having excellent bonding properties, especially on low energy surfaces.

Download

Features

  • Excellent holding properties
  • Excellent repulsion resistance
  • Good shock absorbance
  • Adhesion on a wide range of materials (especially on polyolefine)
  • Absorb irregularities of the substrate
  • Sound dampening and sealing properties
  • RoHS compliant

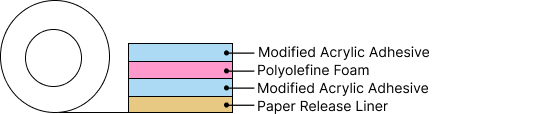

Structure

  1. Acrylic adhesive
  2. Polyolefine foam
  3. Acrylic adhesive
  4. Paper release liner

Properties

Adhesive type Pressure sensitive modified acrylic adhesive
Tape thickness 1,1 mm
Release liner Siliconised brown paper
Carrier type Anthracite crosslinked polyolefine foam
Adhesion value 1100 cN/20mm
Release value 30 cN/50mm
Static shear 1,0 mm/3h

Applications

Nitto 5791 is designed for bonding metal sheets, trim mounting, cable ducts, glass parts and a wide range of plastics to several substrates.
The product is used for interior applications.
