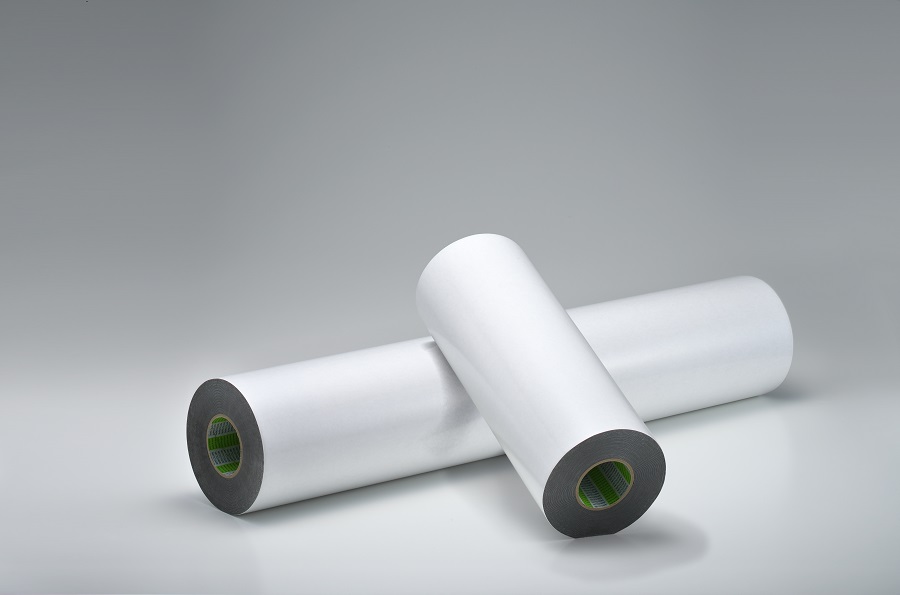

Double coated tape made of flexible foam carrier with an acrylic adhesive that adheres well to various substrates DC5718

Download

Features

  • Excellent bonding to metals and plastics.
  • Flexible and thinner foam is used as tape carrier.
  • It has good followability, excellent adhesion and waterproofness.
  • Halogen-free type. (Chloride compounds are not used for this product.)
  • 10 restricted substances by RoHS are not contained.

Structure

Properties

180° peeling adhesion by substrate

Unit: N/20mm

Substrate DC5718
Stainless steel 29.5
ABS 20.2
Acrylic 30.5
Polycarbonate 30.0
Polypropylene 11.8
Alumininum 28.7
Lron 26.5
Glass 30.7
Plywood 12.9

[Remarks]

  • * Measurement conditions: PET#25 backing, peeling speed 300mm/min, 180° angle.

Waterproof test (based on IPX7, JIS code C0920)

DC5718 IPX7 level

[Remarks]

  • * Tape size:40×60mm(3mm width window shape)
  • * Application condition:1 pass back and forth with a 2Kg roller
  • * Applying temperature:23 degree C/50%RH
  • * Aging condition:23 degree C/50%RHX30min
  • * Test condition:Based on IPX7 (1m water bathX30min dipping)
  • * Water temperature: 23 degree C

Applications

  • Fixing of plastic and metal for nameplate.
  • For waterproofing of housing materials, home appliances, etc.

Size

Width[mm] Length[M]
480,960 20,50
