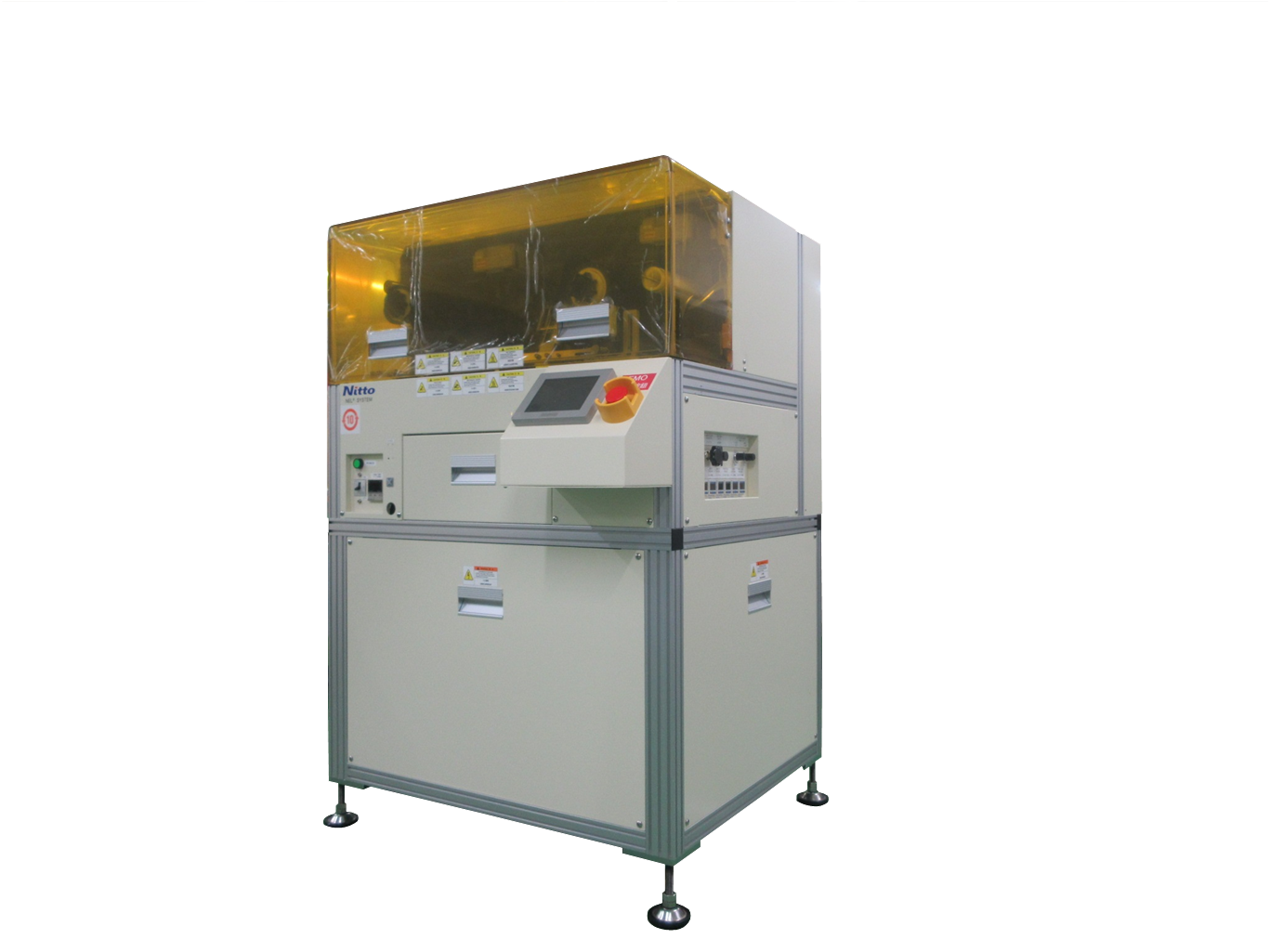

MSA300II
Semi-auto Wafer Mounter for 300mm wafer (Roll tape)
Operation flow
Features
- 300mm wafer available
- Exclusive use of Roll tape
- Table heating function:
- Easy operation by Touch panel
- Follow to CE mark / SEMI S2/S8
Basic spesifications
- Applicable frame size： 300mm／200mm
- Applicable wafer size： 300mm／200mm
- Applicable wafer thickness： 300mmwafer： 200um or more（Contact table）、250um or more（Non-contact table） 200mmwafer： 200um or more（Contact table）、250um or more（Non-contact table）
- Throughput： App.40sec.／wafer
MSA300PII
Semi-auto Wafer Mounter for 300mm wafer (Pre-cut tape)
Operation flow
Features
- Semi-auto 300mm Wafer mounter
- Exclusive use of Pre-cut tape
- DAF available
- Table heating function
- Easy operation by Touch panel & Recipe function
- Follow to CE mark / SEMI S2/S8
Basic spesifications
- Applicable frame size： 300mm／200mm
- Applicable wafer size： 300mm／200mm
- Applicable wafer thickness：
- Throughput： App.45sec.／wafer
MSA840II
Semi-auto Wafer Mounter for 200mm wafer (Roll tape)
Operation flow
Features
- Semi-auto type 200mm Wafer mounter
- Exclusive use of roll tape
- Table heating function
- Easy operation by Touch panel
- Follow to CE mark / SEMI S2/S8
Basic spesifications
- Applicable frame size： 8 inch／6 inch
- Applicable wafer size： 8 inch／6 inch／5 inch／4 inch
- Applicable wafer thickness： 200um or more（Contact table）、250um or more（Non-contact table）
- Throughput： App.40sec./wafer
MSA840P
Semi-auto Wafer Mounter for 200mm wafer (Pre-cut tape)
Operation flow
Features
- Semi-auto type 200mm Wafer mounter
- Exclusive use of Pre-cut tape
- DAF available
- Table heating function
- Easy operation by Touch panel & Recipe function
- Follow to CE mark / SEMI S2/S8
Basic spesifications
- Applicable frame size： 8 inch／6 inch
- Applicable wafer size： 8 inch／6 inch
- Applicable wafer thickness： 200um or more
- Throughput： App.45sec./wafer
M286N
M286N: Semi-auto Wafer Mounter for 8" wafer
Operation flow
Features
- Semi-automatic wafer mounter
- Tape applying automatically, Tape cutting manually by hand
- Adding of Static eliminator (Option)
- Panel mounting available (Option)
Basic spesifications
- Applicable frame size：8 inch/6 inch
- Applicable wafer size：8 inch/6 inch/5 inch/4 inch
- Applicable wafer thickness： 200um（Contact table）、 250um（Non-contact table）
- Throughput： App.30sec.／wafer
