Double-coated Tape 5790YPP

Nitto 5790YPP series are double coated foam tapes, based on a cross linked polyolefine foam, coated with pressure sensitive adhesive, having excellent bonding properties, especially on low energy surfaces.

Download

Construction

Features

  • Excellent holding properties
  • Excellent repulsion resistance
  • Good shock absorbance
  • Adhesion on a wide range of materials (especially on polyolefine)
  • Absorb irregularities of the substrate
  • Good impact resistance
  • Strong tear resistant PP liner
  • Sound dampening and sealing properties
  • RoHS compliant (2011/65/EC, 2015/863)

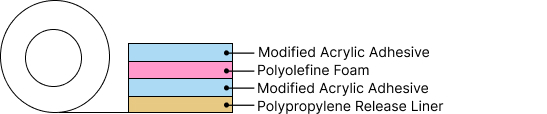

Structure

  1. Polyolefine foam
  2. Acrylic adhesive
  3. Release liner

Properties

General physical properties

Adhesive type Modified acrylic adhesive
Tape thickness 0.6mm(YPP5),0.9mm(YPP8),1.1mm(YPP10)
Release liner type 2 sided siliconised yellow polypropylene (100 μm)
Carrier type Crosslinked polyolefine foam ( 185 kg/m³)
Adhesion to BA steel 1700 cN/20mm
Release value 40 cN/50mm
Static shear 1,0 mm/3h
Optimum transport and storage conditions Temperature 5 °C to 35 °C
Relative humidity 40 to 85% RH
* Tape thickness = Total thickness without liner.
Details from the test methods are described on the customer product specification.
CAUTION: The above are typical values and should not be used in writing specifications.

Applications

Nitto 5790YPP series are designed for bonding metal sheets, nameplates, emblems, glass parts and a wide range of plastics to several substrates. These products can be used for interior and exterior applications.

Application guidelines

- For optimum results, an even rub down pressure must be applied to the taped area to create the best possible adhesion between tape and the substrates.
- Remove the liner prior to usage.
- The tape should be applied to clean and dry surfaces.
- The best application conditions are obtained at a temperature between 15 °C and 40 °C.
- For an additional or process liner we recommend to use following liners:
LR-P-579x white one sided siliconised PE coated liner, LR-PE(1/2)-579x white two sided PE coated paper liner.
